HURCO VMX 30i

Automation einer HURCO VMX 30i 3-Achs-Bearbeitungsmaschine mit Schraubstock.
Rohteile in Spacebox mit Kameraerkennung.

OKUMA LB3000 EX III

Automation
einer OKUMA LB3000 EX III

HERMLE C20U VF 2SS

Automation einer HAAS VF 2SS Drehmaschine mit formschlüssig bereitgestellten Rohteilen, die
mit einem Vakuumgreifer aufgenommen werden.

GF Machining MILL E 700 U

Automation einer GF Machining MILL E 700 U 5-Achs-Fräsmaschine mit Schraubstock.
Rohteile in Spacebox mit Kameraerkennung.

HERMLE C20U VF 2SS C20U PUMA GT3100 LM

Automation einer DN Solutions Puma GT3100 LM Drehmaschine mit Hauptspindel mit Backenfutter. Rohteile bereitgestellt
in Stapeln auf zwei Paletten.

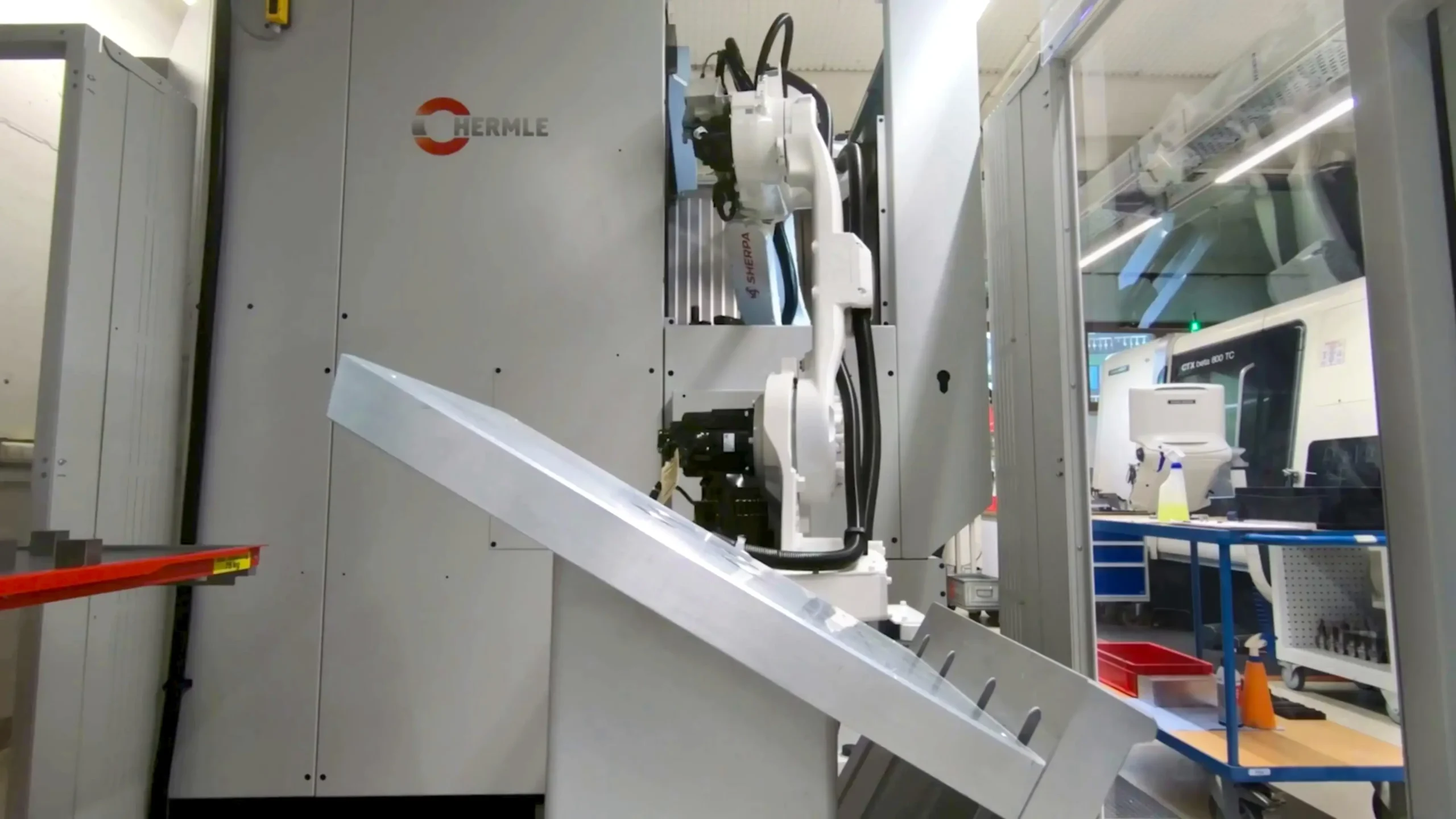

HERMLE C20U

Automation eines HERMLE C20 U 5-Achs Bearbeitungszentrums mit mechanischem Schraubstock, der von
einem elektrischen Drehmomentschrauber betätigt wird.

HERMLE C400

Automation of a HERMLE C400 5-axis milling machine for machining
steel blanks, supplied via SpaceBox

DMG MORI DMU 60 eVo

Automation of a DMG MORI DMU 60 eVo 5-axis milling machine for machining
steel blanks, supplied via SpaceBox

HAAS ST-25Y

Automation of a HAAS ST-25Y lathe for machining plastic parts, provided
in stacks on Euro pallets

MAZAK QuickTurn 200 MSY

Automation of a MAZAK QT200 MSY lathe for processing round bar
blanks, provided on a SpaceBox

HAAS VF-3

Automation of a HAAS VF-3 5-axis machine for processing sensitive
plastic housings, provided by Spacebox

HERMLE C42U

Automation of a HERMLE C42 U 5-axis milling machine for machining
plastic parts, provided by Spacebox

DOOSAN DVF5000

Automation of a DOOSAN DVF5000 5-axis machine for processing
plastic parts, provided by Spacebox

AXA HFB1 duo

Automation of an AXA HFB1 duo end processing machine for processing heavy
shafts, supplied on Euro pallets

SPINNER U-2520

Automation of a SPINNER U-2520 3-axis milling machine with 4th axis for
machining profiles, provided by Spacebox.

DMG MORI CTX beta 800

Automation of a DMG MORI CTX beta 800 lathe for
machining castings, provided by Spacebox.

HURCO VMX30Ui

Automation of a HURCO VMC30Ui 5-axis milling machine for processing sawn cuboids,
provided on a table trolley.

DMG MORI CTX beta 1250 TC

Automation of a DMG MORI CTX beta 1250 TC turn-mill center for machining cast
parts, provided on table trolleys.

HWACHEON Hi-Tech 450BL YMC

Automation of a HWACHEON 450BL YMC lathe for machining large
cylinders, supplied on Euro pallets.

POSmill E-1100

Automation of a POSmill E-1100 3-axis milling machine for processing stacked
panels provided on Euro pallets.

DMG MORI CMX 70 U

Automation of a DMG MORI CMX 70 U 5-axis milling machine for processing sawn cuboids,
provided on a table trolley.

MORI SEIKI NL2000

Automation of a MORI SEIKI NL2000 lathe for machining cast parts,
provided on a table trolley.

MORI SEIKI SL-400

Automation of a MORI SEIKI SL-400 lathe for processing sawn cuboids,
provided on a table trolley.

GROB G550a

Automation of a GROB G550a 5-axis milling machine for processing sawn
cuboids, provided on Euro pallets.

HERMLE C20 U

Automation of a HERMLE C20 U 5-axis milling machine for processing sawn cuboids,
provided on a table trolley.

CHIRON Mill 3000

Automation of a CHIRON Mill 3000 3-axis milling machine for processing sawn cuboids, provided
by means of a spacebox.

MORI SEIKI NTX2000

Automation of a MORI SEIKI NTX2000 turning/milling center for machining cast
parts, provided on table trolleys.

MAZAK VCN-530C

Automation of a MAZAK VCN 530C 3-axis milling machine for processing
sawn cuboids, provided by Spacebox.

DMG MORI DMU 65 FD

Automation of a DMG MORI DMU 65 5-axis milling machine for the machining of
sawn cuboids, provided by Spacebox.

SPINNER U-1520

Automation of a SPINNER U-1520 5-axis milling machine for processing sawn
cuboids, provided by Spacebox.

MAZAK QuickTurn 250M

Automation of a MAZAK Quick Turn 250M lathe for machining cylindrical
saw cuts, provided by Spacebox.

DMG MORI CTX800 beta

Automation of a DMG MORI CTX800 beta lathe for machining large
cylinders, supplied on Euro pallets.

GILDEMEISTER CTX 420 linear

Automation of a GILDEMEISTER CTX 420 lathe for
machining rings, provided by Spacebox.

HERMLE C400

Automation einer HERMLE C400 5-Achs Fräsmaschine zur Bearbeitung von
gesägten Quadern, bereitgestellt mittels Spacebox.

GROB G350

Automation of a GROB G350 5-axis milling machine for processing sawn cuboids,
provided on a table trolley.

MAZAK Integrex i-400 ST

Automation of a MAZAK Integrex i-400 ST turn-mill center for machining
cylinders, provided on table trolleys.

OKUMA SimulturnLU300-M

Automation of an OKUMA Simul Turn LU300-M lathe for machining rings,
provided on a table trolley.

GILDEMEISTER CTX 400

Automation of a GILDEMEISTER CTX 400 lathe for processing stacked saw
cuts, provided on Euro pallets.

MAZAK QuickTurn 200MS

Automation of a MAZAK Quick Turn 200MS lathe for machining cylindrical saw cuts, provided
by means of a spacebox

DOOSAN Puma 2600S

Automation of a DOOSAN Puma 2600S lathe for machining large
cylinders, supplied using Euro pallets.

MAZAK Integrex 200-II SY

Automation of a MAZAK Integrex 200-II SY turn-mill center for
machining cylinders, provided by Spacebox.

DMG MORI CLX 350

Automation of a DMG MORI CLX 350 lathe for
machining rings, provided by Spacebox.

MAZAK QuickTurn250 MY

Automation of a MAZAK QT250 MY lathe for machining
shafts, supplied on Euro pallets.

HAAS UMC 750

Automation of a HAAS UMC 750 5-axis milling machine for processing sawn cuboids,
provided on a table trolley.

MAZAK QuickTurn250 MY

Automation of a DMG MORI CTX beta 1250 TC turn-mill center for machining
shafts, provided on Euro pallets.

OKUMA LB3000 EX

Automation of an OKUMA LB3000 EX lathe for machining cylindrical saw
cuts, provided on table trolleys.

MORI SEIKI SL-250

Automation of a MORI SEIKI SL-250 lathe for processing cylindrical saw
cut-offs, provided on table trolleys.

MORI SEIKI SL-250

Automation of an OKUMA LB35-II lathe for machining cylindrical saw
cuts, provided on table trolleys.

DOOSAN Puma TL 2400 LM

Automation of a DOOSAN Puma TL2400 LM lathe for machining
shafts, supplied on Euro pallets.

MORI SEIKI SL-204

Automation of a Mori Seiki SL-204 lathe for processing saw offcuts,
placed on a table trolley.

MAZAK QuickTurn250 MY

Automation of a MAZAK QT250 MY lathe for machining cylindrical saw cuts,
provided on a table trolley.

Measuring module

Coordinate measuring machine integrated into the unloading process
for reliable quality inspection data

Turning module

Station integrated into the loading process
for turning workpieces before OP2

Pre-embossing Module

Embossing vice integrated into the production process for
narrow to very wide workpieces

Parting Module

Station integrated into the unloading process for cleaning chips and cooling
lubricants from the machined workpieces

Marking Module

Marking station integrated into the unloading process with reliable carbide
needle and large marking window

Cutting Module

Cut-off extension module for producing several
semi-finished products from one blank

Align Module

Alignment station for pre-positioning molded parts for position-oriented
insertion into the processing machine

Electric spindle drive

Automation of machine vices without rotary feed-through, with torque-accurate
control of the tightening torque
