For a wide range of components: four models

UR robots with 10 and 12 kg load capacity for handling round and hexagonal bars, plate and square blanks as well as cast and forged parts. Equipped with two-jaw parallel grippers or three-jaw centric grippers, pneumatically or servo-electrically actuated, fitted with single fingers, pendulum jaws, contour jaws or prism inserts.

Milling

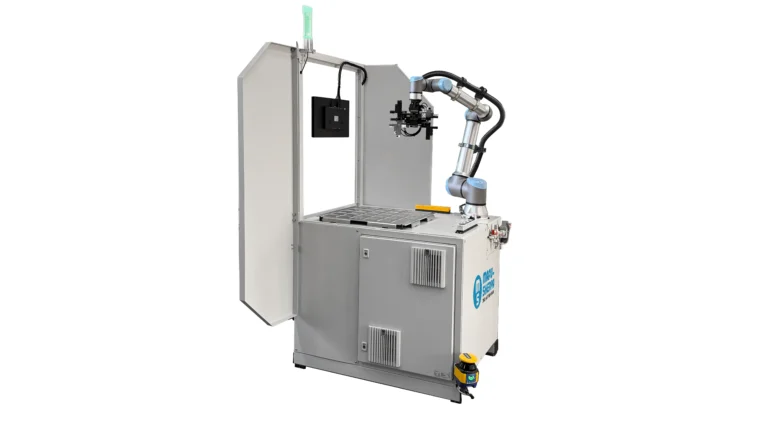

SherpaLoader® M10 UR

For edging material
up to 6 kg weight*
Size range:
10 x 10 x 10 to
150 x 150 x 150 mm

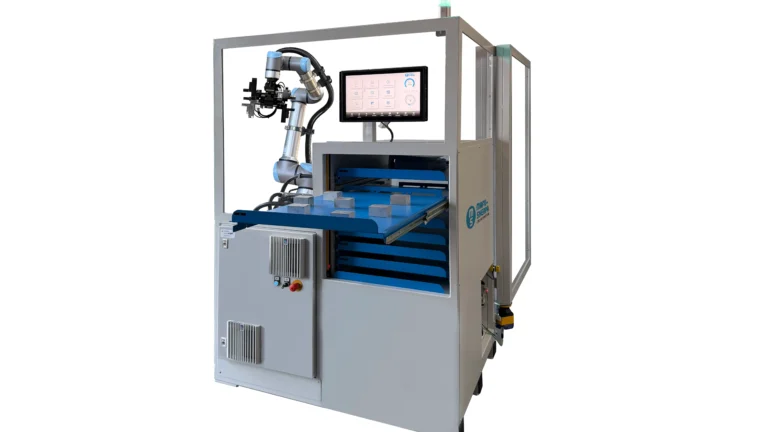

SherpaLoader® M12 UR

For edging material
up to 8 kg weight*
Size range:
10 x 10 x 10 to
150 x 150 x 150 mm

Turning

SherpaLoader® T10 UR

For Cylinders and Shafts
up to 6 kg weight*
Size range:
Ø 10 x 10 - Ø 150 x 150 and
Ø 10 x 50 - Ø 30 x 300 mm

SherpaLoader® T12 UR

For Cylinders and Shafts
up to 8 kg weight*
Size range:
Ø 10 x 10 x 10 and
Ø 150 x 150 x 150 mm

* Handling weight depends on the component's center of gravity

Arrange a demonstration!

It is always our pleasure to have the system set up and started without any instructions from the operator.
